Accu-Mount Series 100

Healthcare Equipment Support

Designed to support smaller loads such as exam and procedure lights, injectors, and navigation equipment.

Accu-Mount Series 100

Healthcare Equipment Support

Designed to support smaller loads such as exam and procedure lights, injectors, and navigation equipment.

Used in:
  • Exam & Procedure Rooms
  • Surgical Operating Rooms
  • Medical & Dentist Offices
  • Veterinary Clinics

Primarily recommended for use at veterinary clinics, dentist and medical offices, wellness and urgent care centers as well as, hospitals and healthcare facilities.

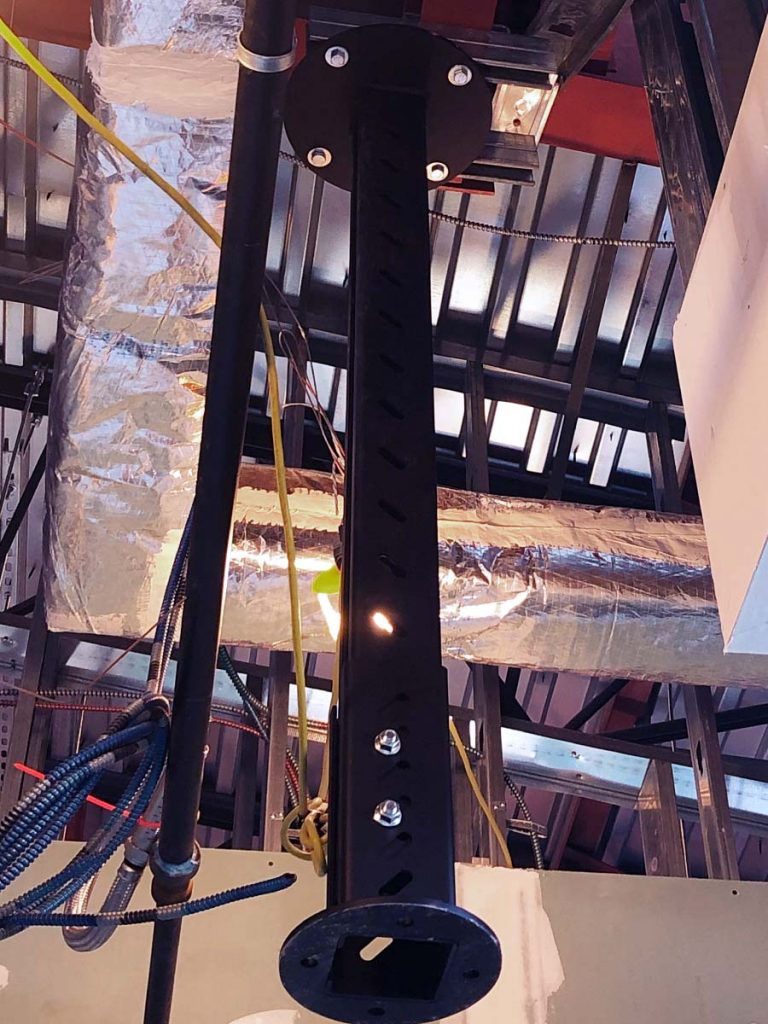

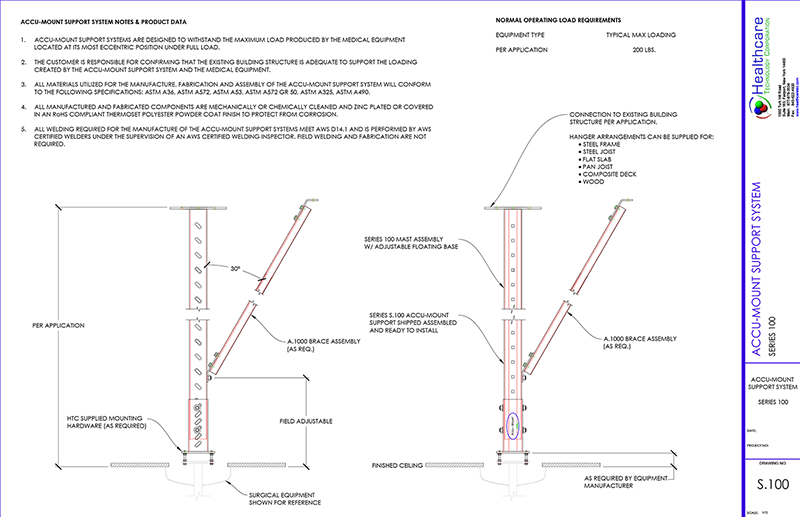

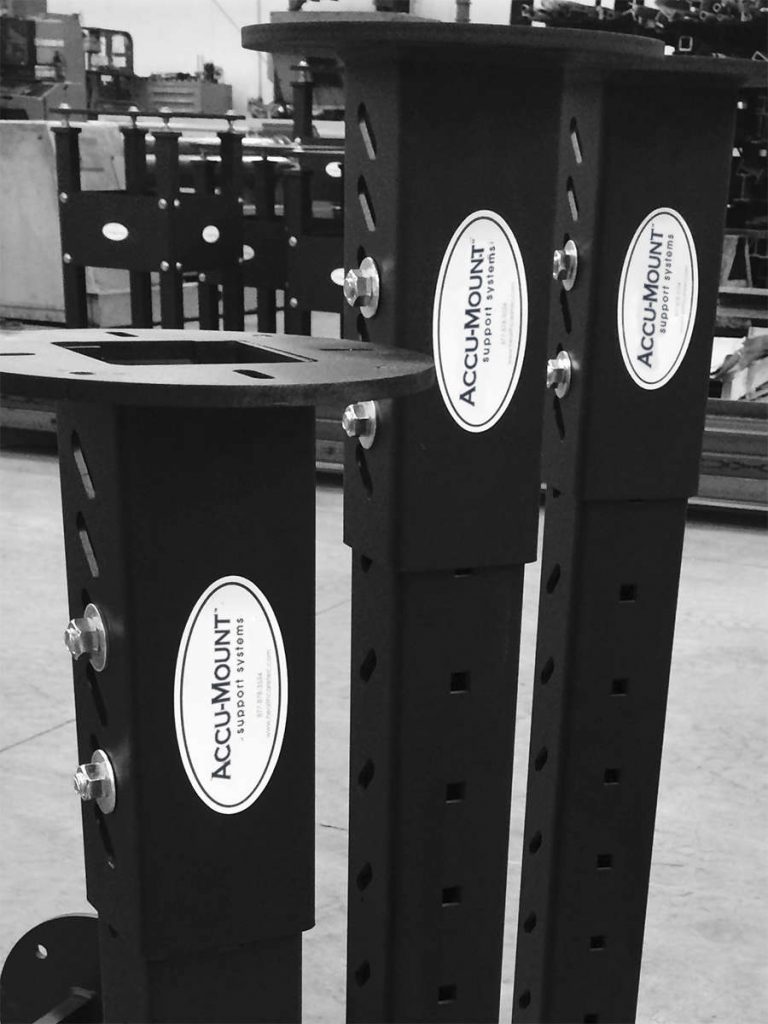

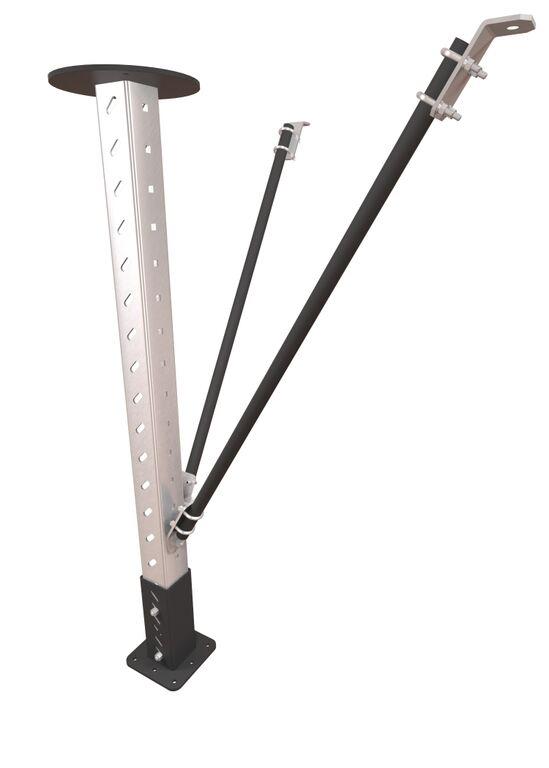

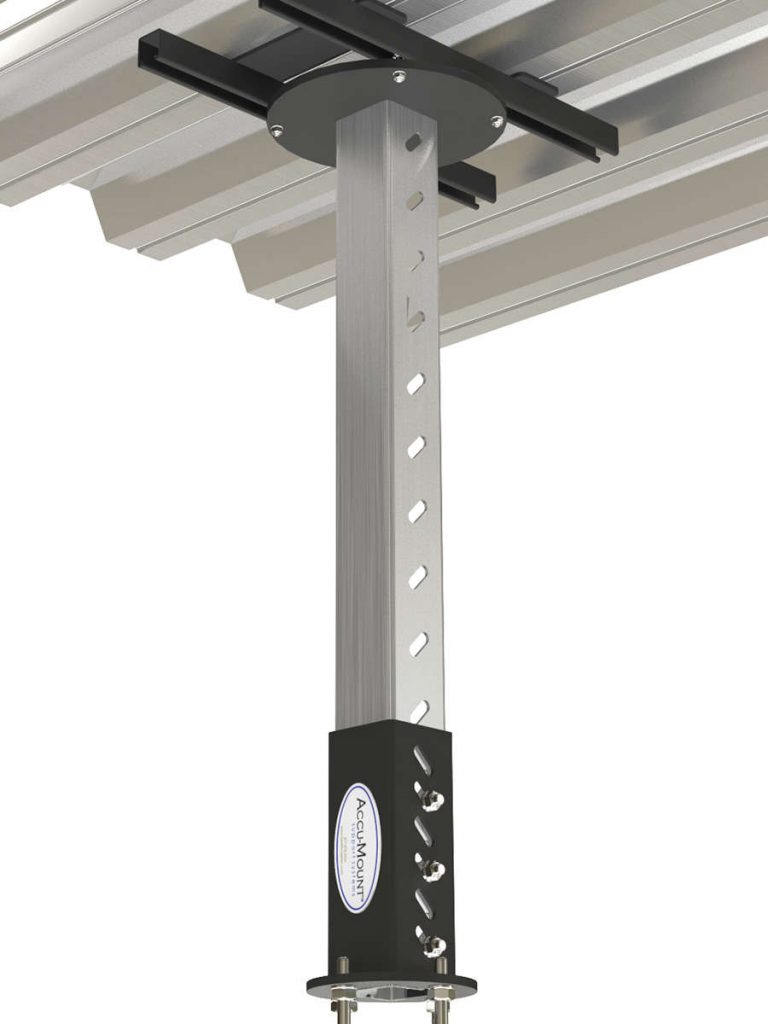

Accu-Mount Series 100 System utilizes it’s Accu-Spar support frame as the main mast support assembly.  Integrated with a specially designed floating base, the Accu-Spar mast allows for easy, field height adjustability.  The sway braces may also be adjusted to accommodate congested ceilings.  Mounts can ship either fully assembled or in kit form, helping to reduce installation time as well as, assist with material staging.

Mounts on:
  • Flat Slab

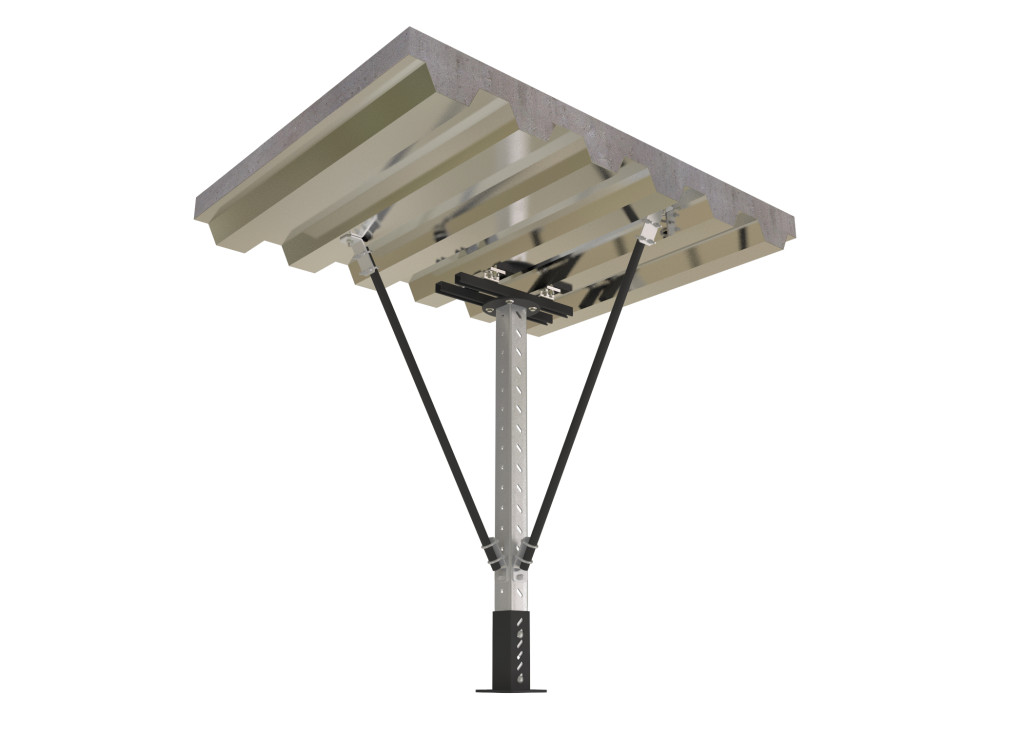

  • composite deck
  • steel frame

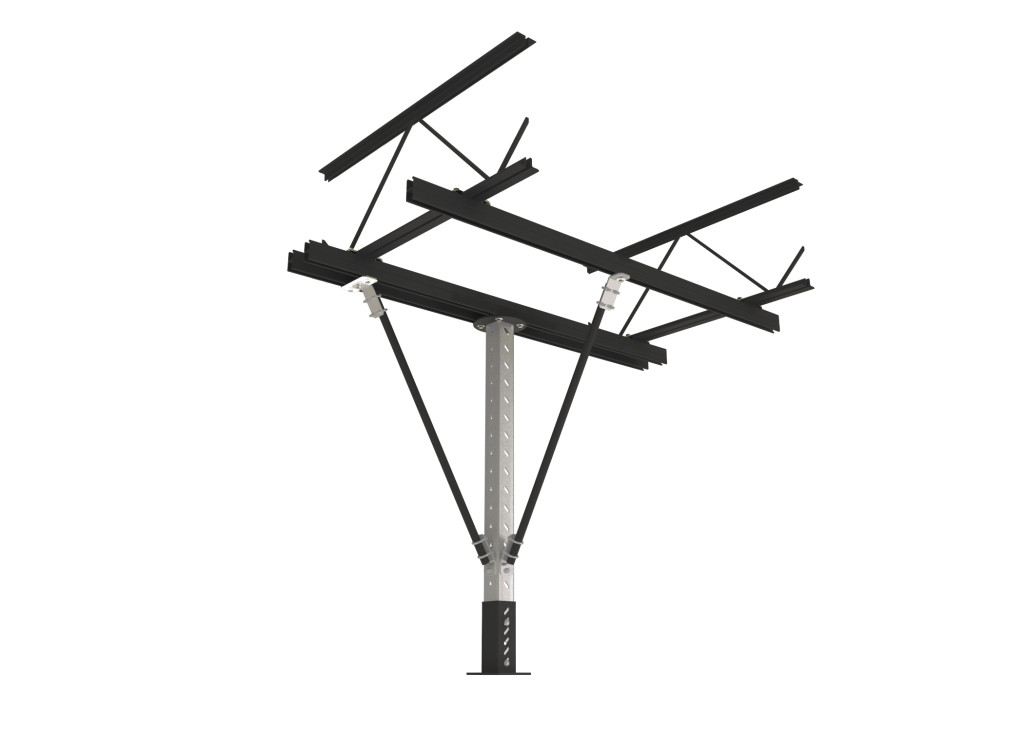

  • steel joist
  • wooden

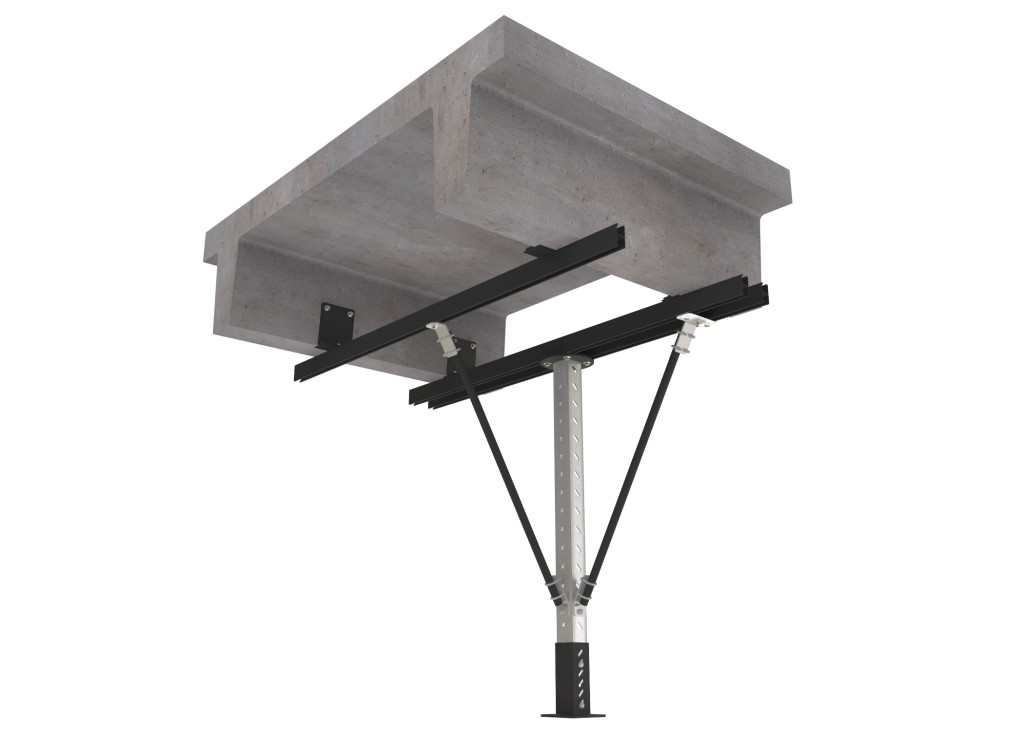

  • pan joist building structures

All components are mechanically or chemically cleaned, zinc plated or covered in a RoHS compliant, thermoset polyester powder coat finish.  Attachment hangers or arrangements for flat slab, composite deck, steel frame, steel joist, wooden, and pan joist building structures can also be supplied.

Call Us Now

For Project Specific Pricing & Drawings

Speak with an Engineer(877) 878-3534

Featured Here

See how the Accu-Mount Series 100 is used by top healthcare facilities across the country.

Wake Forest West Campus Medical Plaza

Advance, NC

Read about the project

Mayo Clinic Dermatology Department

Rochester, MN

Read about the project
