Accu-Mount Series 200

Healthcare Equipment Support

Designed to support heavier loads such as surgical lights and monitor equipment.

Accu-Mount Series 200

Healthcare Equipment Support

Designed to support heavier loads such as surgical lights and monitor equipment.

Used in:
  • Surgical & Procedure Rooms
  • Hybrid ORs
  • Renovations, Expansions & New Builds

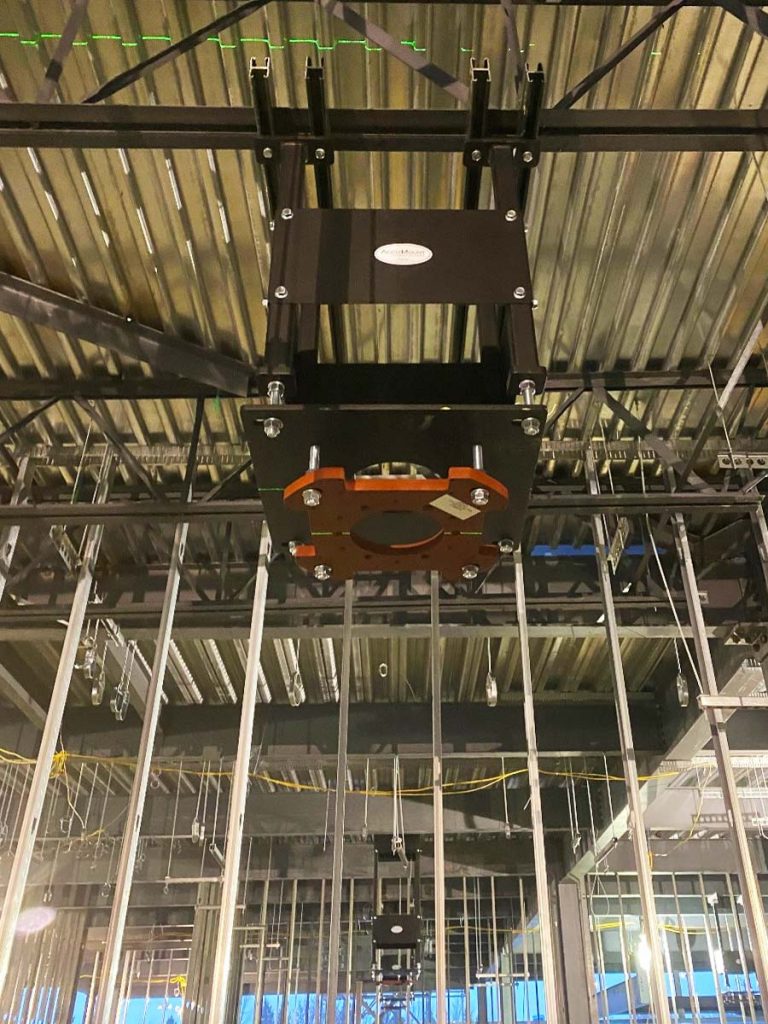

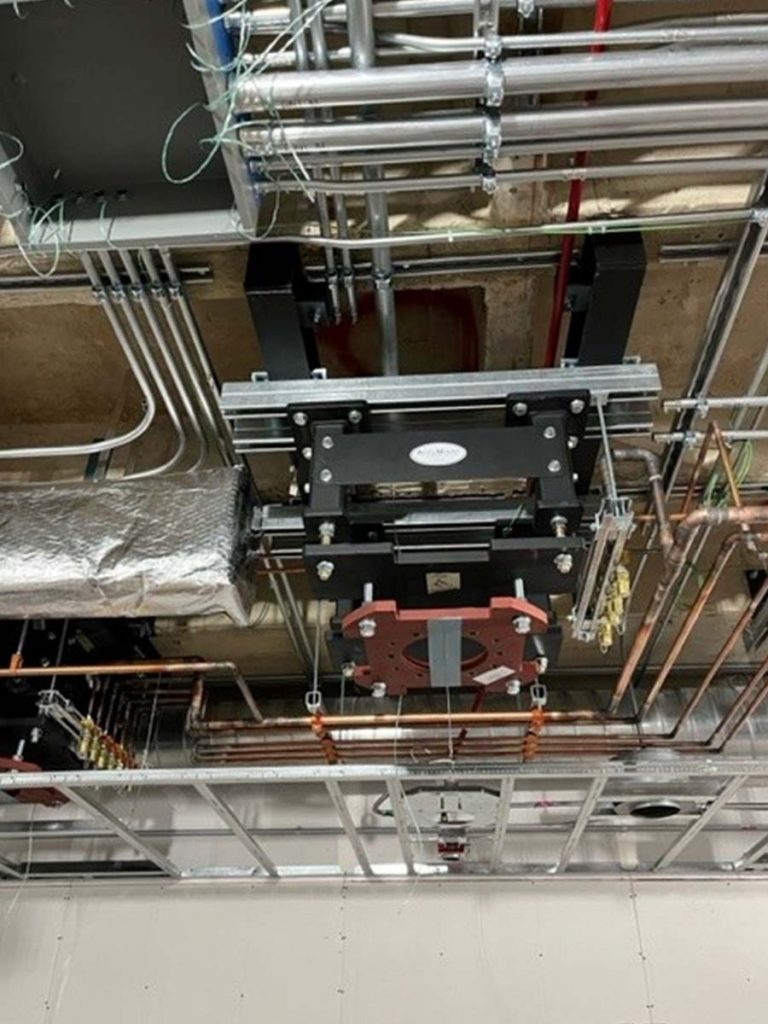

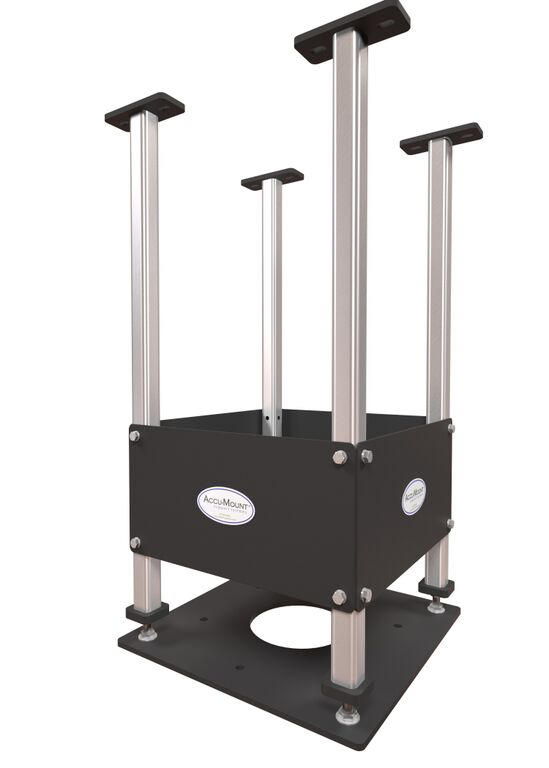

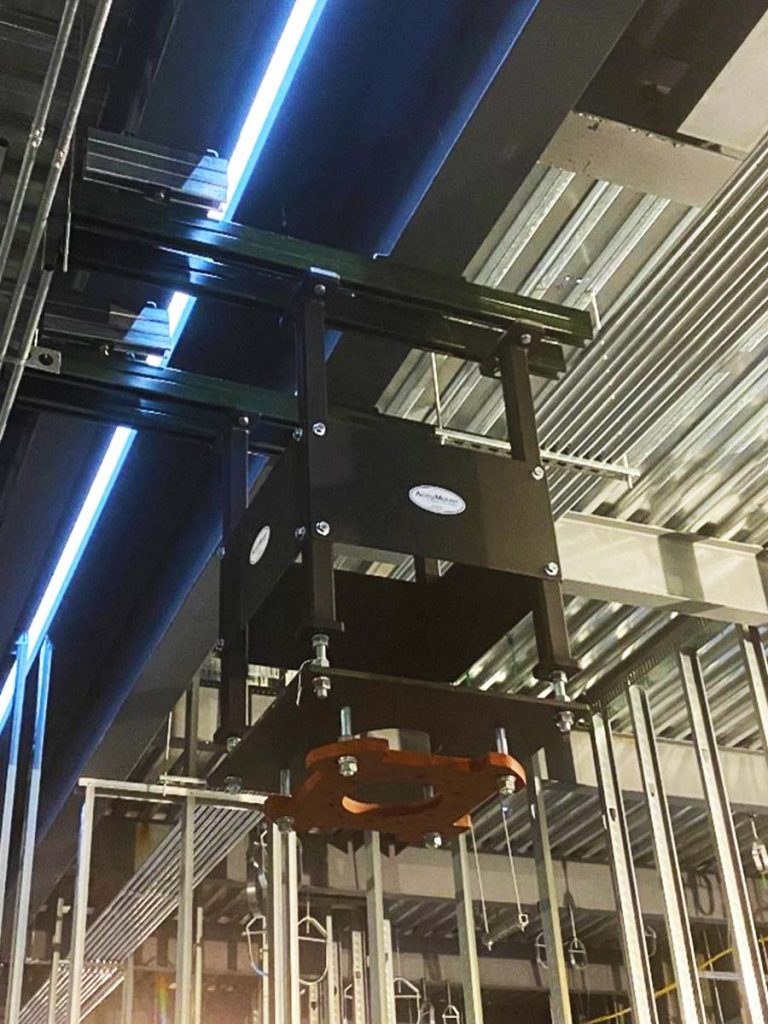

Primarily recommended for use in surgical & procedure rooms and hybrid ORs for new hospital build, expansion and renovation projects.  The mounts are built with an adjustable base plate, which allows for field height adjustability and easy on site leveling.  Mounts can ship either fully assembled or in kit form, helping to reduce installation time as well as, assist with material staging.

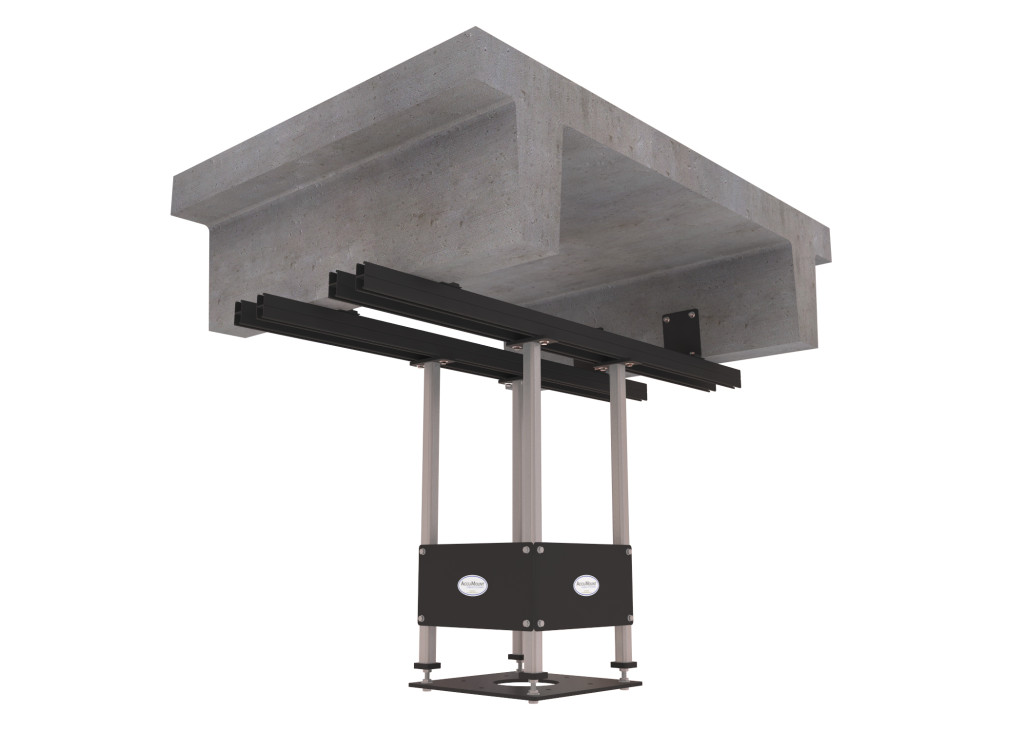

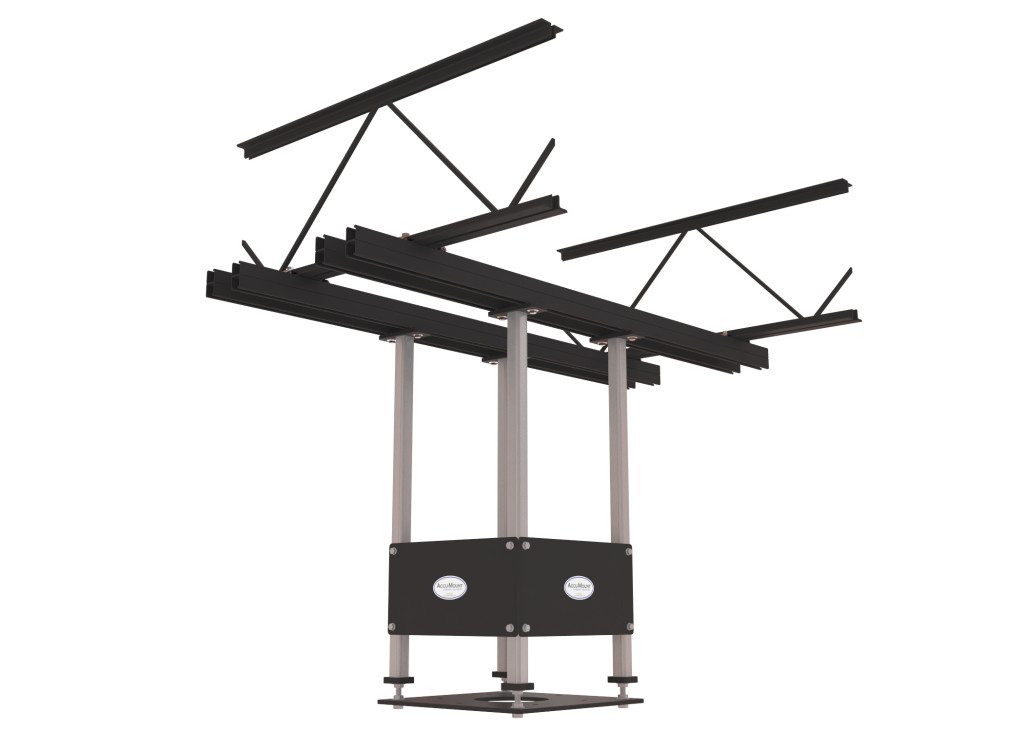

When needed, header mount arrangements can be supplied for steel frame, steel joist and pan joist building structures. Field welding and on site fabrication is not required.

Mounts on:
  • Flat Slab
  • composite deck
  • steel frame
  • steel joist
  • wooden
  • pan joist building structures

All components are mechanically or chemically cleaned, zinc plated or covered in a RoHS compliant, thermoset polyester powder coat finish.  Attachment hangers or arrangements for flat slab, composite deck, steel frame, steel joist, wooden, and pan joist building structures can also be supplied.

Call Us Now

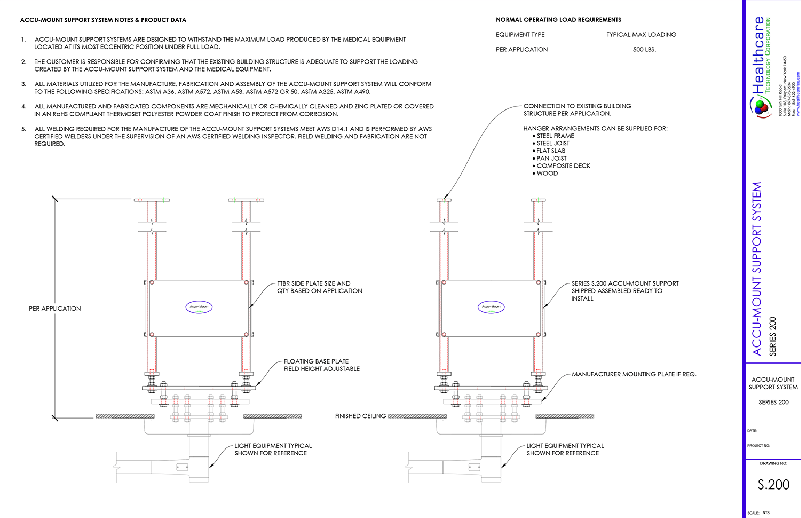

For Project Specific Pricing & Drawings

Speak with an Engineer(877) 878-3534

Featured Here

See how the Accu-Mount Series 200 is used by top healthcare facilities across the country.

John C. Lincoln North Mountain Hospital

Phoenix, AZ

Read about the project

Mayo Clinic Surgical Suites

Rochester, MN

Read about the project
