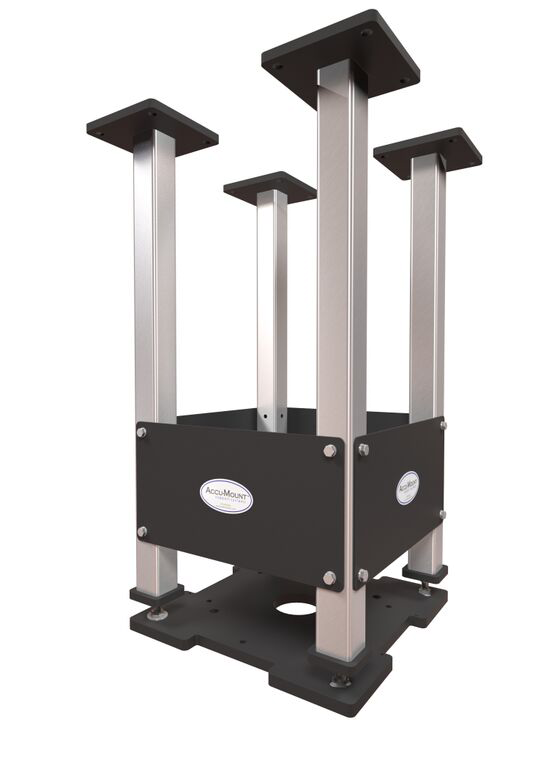

Accu-Mount Series 300

Healthcare Equipment Support

Designed for high moment generating equipment such as anesthesia booms, equipment management systems, and tandem configurations.

Accu-Mount Series 300

Healthcare Equipment Support

Designed for high moment generating equipment such as anesthesia booms, equipment management systems, and tandem configurations.

Used in:
  • Surgical & Procedure Rooms
  • Cath Labs
  • Renovations, Expansions & New Builds

Primarily recommended for use in cath labs, orthopedic & hybrid ORs for new hospital build, expansion and renovation projects.  Mounts are built with an adjustable base plate which allows for onsite leveling, field height adjustability and rotational adjustability, to help with ceiling grid alignment.  Mounts can ship either fully assembled or in kit form, helping to reduce installation time as well as, assist with material staging.

Header mount arrangements can be supplied for steel frame, steel joist and pan joist building structures. Field welding and on site fabrication is not required.

Mounts on:
  • Flat Slab

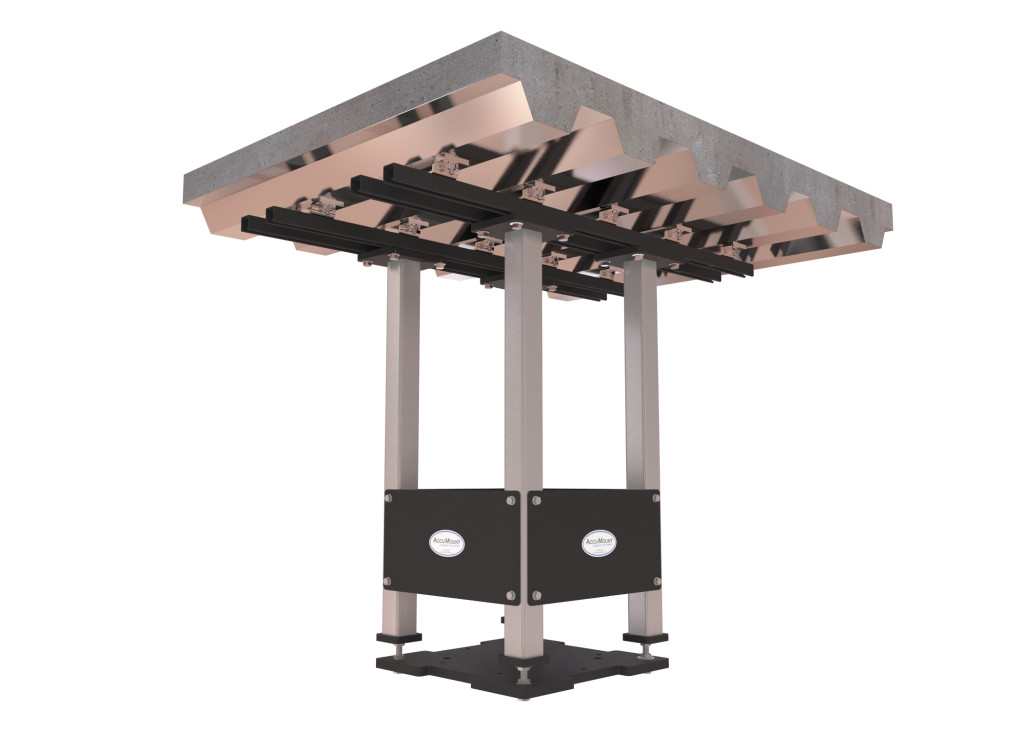

  • composite deck

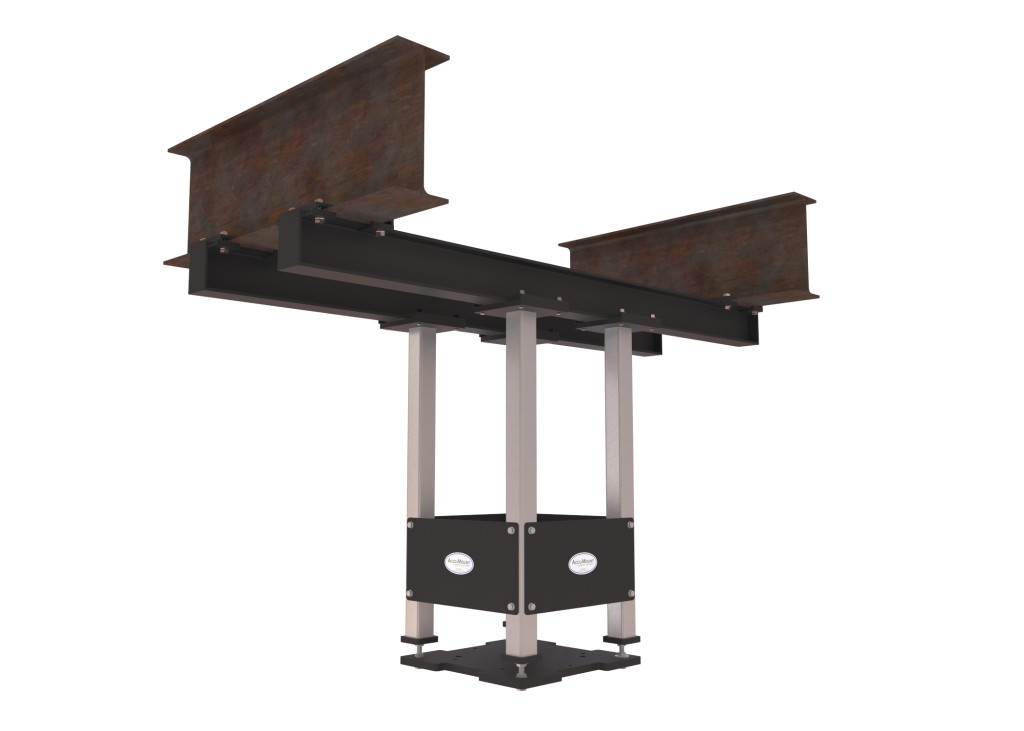

  • steel frame
  • wooden
  • steel joist

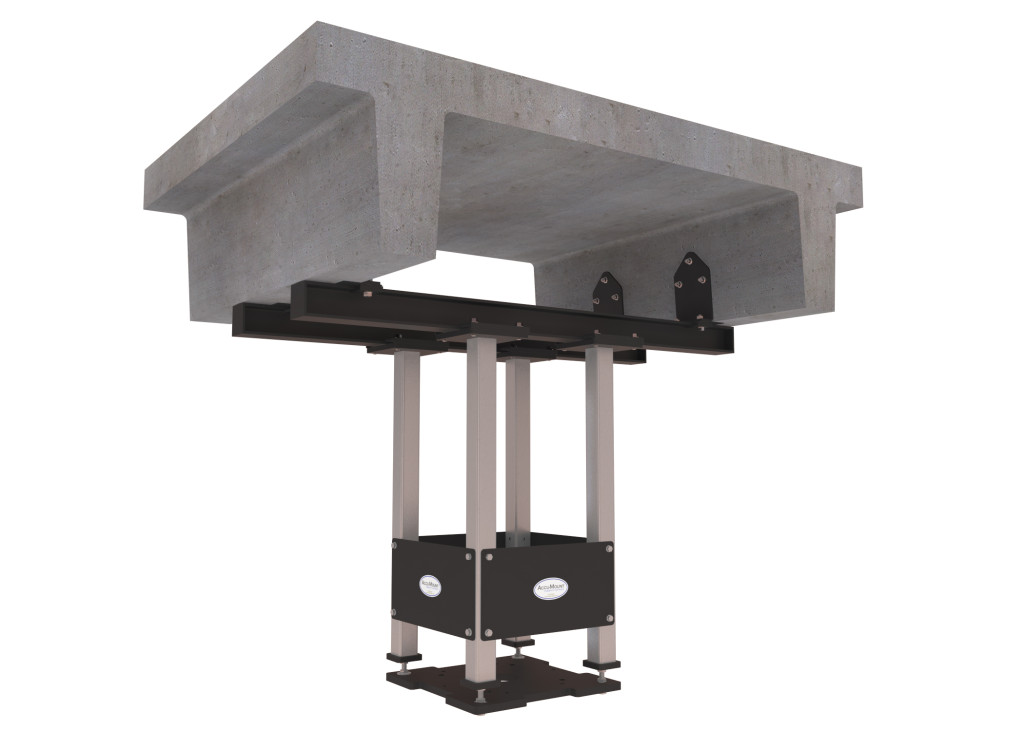

  • pan joist building structures

All components are mechanically or chemically cleaned, zinc plated or covered in a RoHS compliant, thermoset polyester powder coat finish.  Attachment hangers or arrangements for flat slab, composite deck, steel frame, steel joist, wooden, and pan joist building structures can also be supplied.

Call Us Now

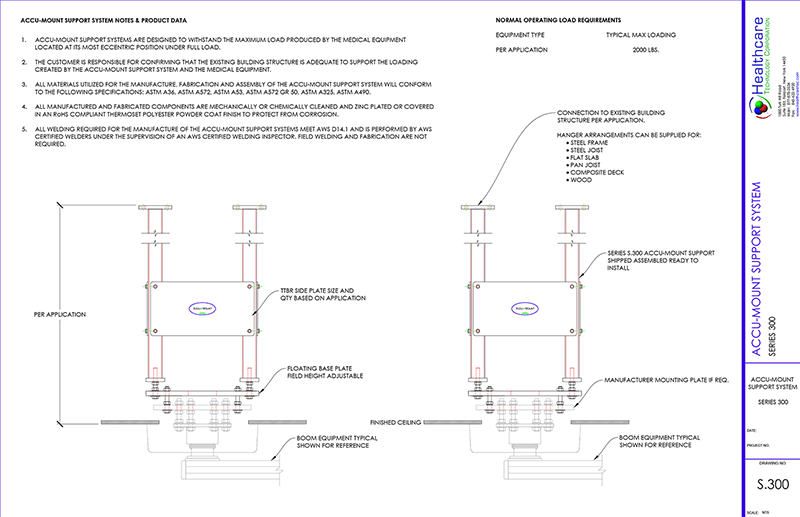

For Project Specific Pricing & Drawings

Speak with an Engineer(877) 878-3534

Featured Here

See how the Accu-Mount Series 300 is used by top healthcare facilities across the country.

Genesis Hospital

Zanesville, OH

Read about the project

UW Health at The American Center

Madison, WI

Read about the project
